光電傳感器-FG系列

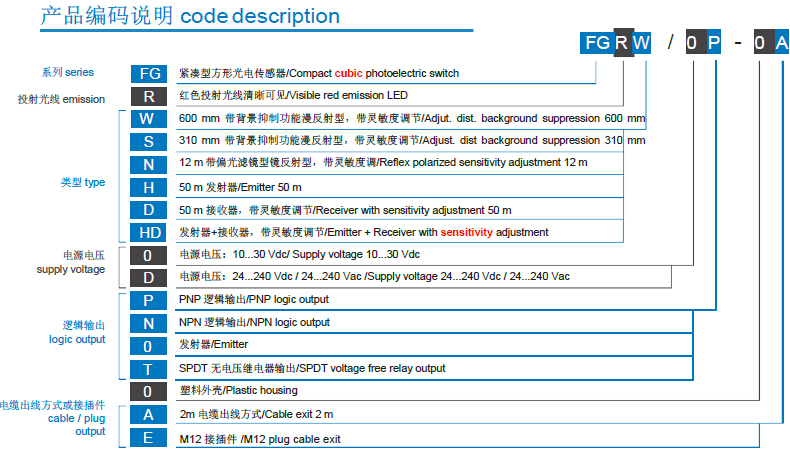

墨迪M.D.光電傳感器 ,FGRW/0P-0E,墨迪

產品性能:

性能高，檢測距離高的緊湊型光電開關

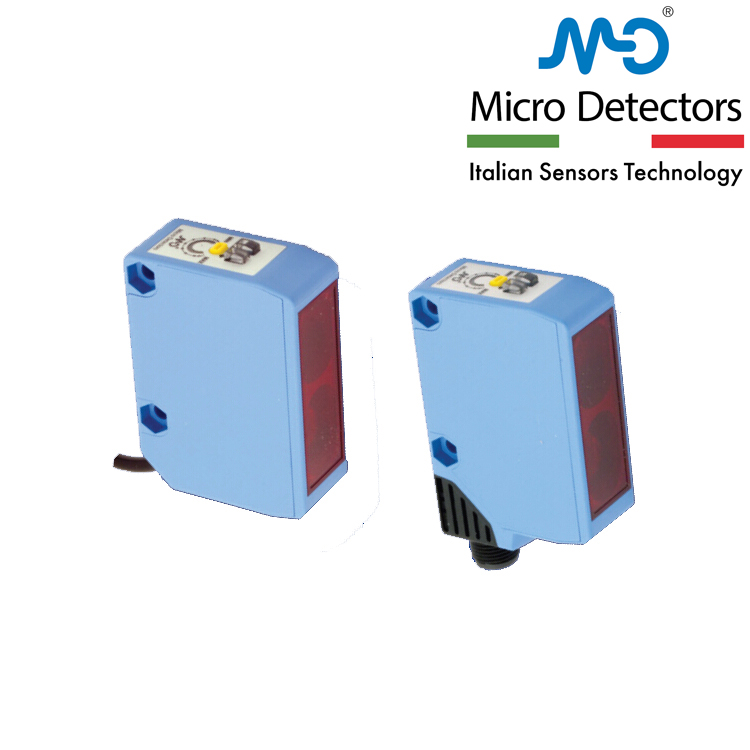

Compact photoelectric switch sensors with high performances and high detection distances

• 電纜出線方式或帶帶旋轉連接器，NPN 或 PNP output (DC 型號)，SPDT 無電壓繼電器輸出（AC 型號）Cable output or with revolving connector, NPN or PNP output (DC models) and SPDT voltage free relay output (AC models)

• LO/DO 輸出狀態可選 Selectable LO/DO output status

• 完善的保護措施以避免電氣傷害Totally protected against electrical damages

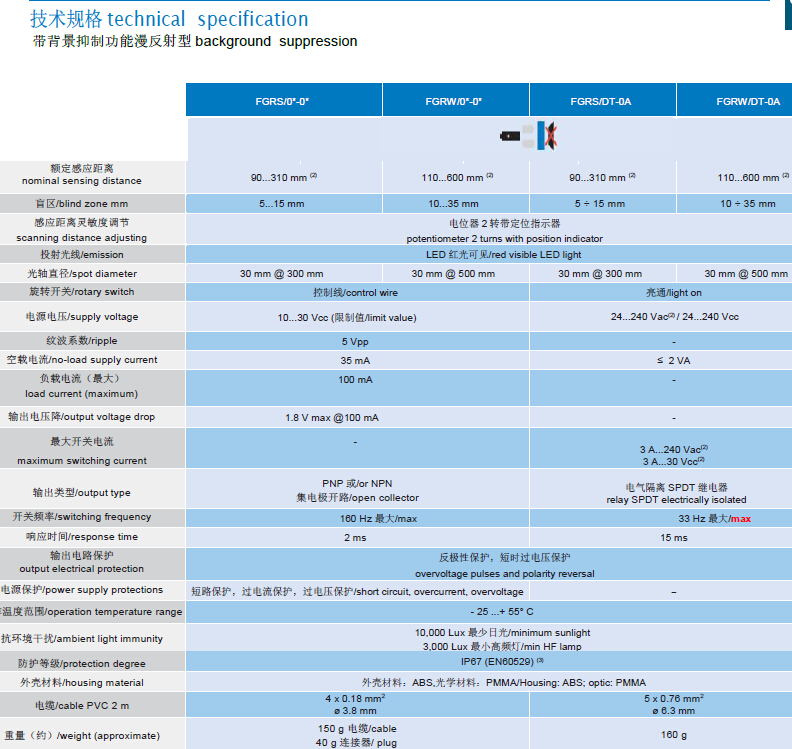

• 帶背景抑制功能漫反射型：310 mm, 600 mm Background suppressions models: 310 mm, 600 mm

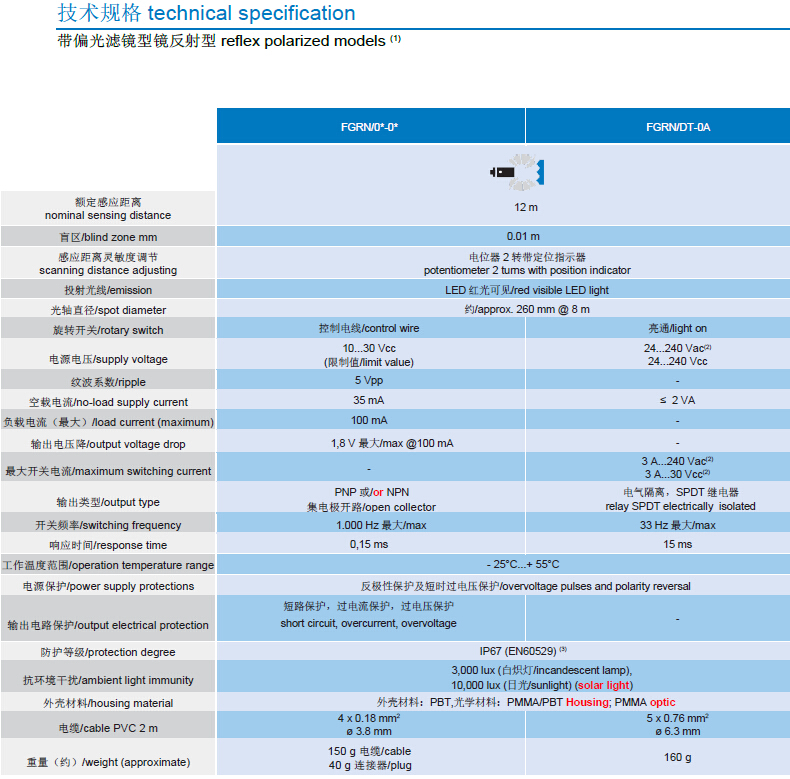

• 12 m 帶偏光濾鏡型鏡反射型帶靈敏度調節 Reflex polarized sensitivity adjustment 12 m

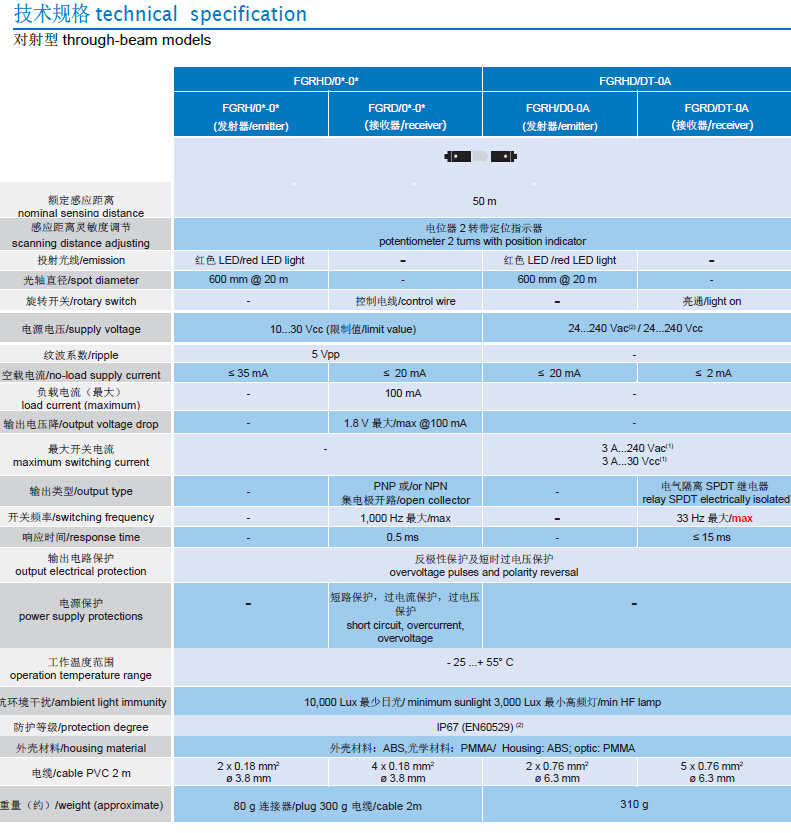

• 帶最大檢測范圍 50m 的發射器和接收器 Emitter and Receiver with max detecting range of 50 m

• 雙多功能 LED 指示燈：輸出狀態和利用指向 Double Multifunction LED indicator: output state and using the pointing

• 帶靈敏度調節型號 Sensitive adjustment models
